USB composite (multi-interface) device with STM32F3-Discovery

There's no USB device library for STM32F3-Discovery published by STM. But it turns out we can use the library for other EVAL boards - STSW-STM32081STM32F10x and STM32L1xx USB full-speed device library. There's also a bunch of examples that go with this library, but they require some magic to work with STM32F3-Discovery hardware. They don't work out of the box. No worries, I'll teach you how to cast those spells.

Some basic information on projects structure that I use and links to resources can be found in these posts:
Links to USB resources on STM website
Creating a new project for STM32F3-Discovery in IAR from scratch

Let's go. Create new workspace, add Composite device example project from STM32_USB-FS-Device_Lib_V4.0.0 library. Create new configuration for STM32F3-Discovery (Project->Edit Configurations, press New..., type name STM32F3Discovery, select STM32303C_EVAL configuration as a basis, press OK). Make sure STM32F3Discovery configuration is active.

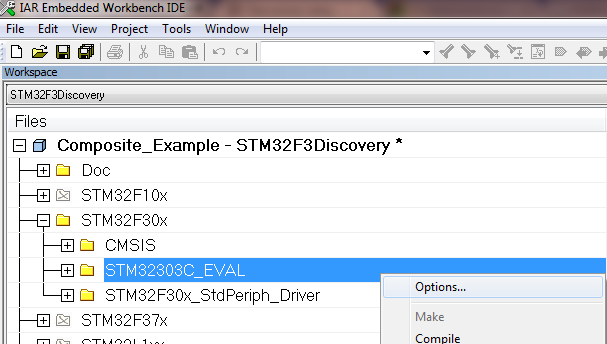

In file explorer, expand STM32F30X group, right click on STM32303C_EVAL group and select Options...

Tick Exclude from Build. Click OK.

In the same STM32F30X group, create a new group STM32F3_Discovery. You now need to add all *.c files from STM32F3_Discovery folder which is a part of STM32F3-Discovery firmware. There is no Discovery libraries in USB-FS-Device library!
Now right click on the project name in file explorer and select Options, then select C/C++ compiler category and Preprocessor tab. Delete the three paths that are for Eval board:
$PROJ_DIR$\..\..\..\Utilities\STM32_EVAL
$PROJ_DIR$\..\..\..\Utilities\STM32_EVAL\Common
$PROJ_DIR$\..\..\..\Utilities\STM32_EVAL\STM32303C_EVAL
Add path to the folder where Discovery library is, for me it is:
$PROJ_DIR$\..\..\..\..\..\F3_projects\Utilities\STM32F3_Discovery <- Change this to fit your system setup!!!
Also, add the following define: USE_STM32F3_DISCOVERY. Close the window.

Now you have to modify the code:

1. File platform_config.h:
Before
After
#elif defined (USE_STM32303C_EVAL)
 #include "stm32f30x.h"
 #include "stm32303c_eval.h"
 #include "stm32303c_eval_spi_sd.h"
#endif
#elif defined (USE_STM32303C_EVAL) || defined (USE_STM32F3_DISCOVERY)
 #include "stm32f30x.h"
 #if defined (USE_STM32F3_DISCOVERY)
  #include "stm32f3_discovery.h"
  #define Button_KEY BUTTON_USER
  #define Mode_EXTI BUTTON_MODE_EXTI
  #define LED1 LED5
  #define LED2 LED6
  #define KEY_BUTTON_EXTI_LINE USER_BUTTON_EXTI_LINE
 #else
  #include "stm32303c_eval.h"
  #include "stm32303c_eval_spi_sd.h"
 #endif //#ifdef (USE_STM32F3_DISCOVERY)
#endif

2. FIle mass_mal.c.
As this example is using SD card which is available on EVAL boards and we don't have that luxury on Discovery, I just mask out every function body in this file returning MAL_OK status. You should do it for every function! The example is just for one:
Before
After

uint16_t MAL_Init(uint8_t lun)
{
  uint16_t status = MAL_OK;

  switch (lun)
  {
    case 0:
      Status = SD_Init();
      break;
#ifdef USE_STM3210E_EVAL
    case 1:
      NAND_Init();
      break;
#endif
    default:
      return MAL_FAIL;
  }
  return status;
}

uint16_t MAL_Init(uint8_t lun)
{
#ifndef USE_STM32F3_DISCOVERY
  uint16_t status = MAL_OK;

  switch (lun)
  {
    case 0:
      Status = SD_Init();
      break;
#ifdef USE_STM3210E_EVAL
    case 1:
      NAND_Init();
      break;
#endif
    default:
      return MAL_FAIL;
  }
  return status;
#else
  return MAL_OK;
#endif //#ifndef USE_STM32F3_DISCOVERY
}

3. File stm32_it.c
Before
#if defined(STM32L1XX_MD) || defined(STM32L1XX_HD)|| defined(STM32L1XX_MD_PLUS)
void EXTI0_IRQHandler(void)
#elif defined (STM32F37X)
void EXTI2_TS_IRQHandler(void)
#else
void EXTI9_5_IRQHandler(void)
#endif

After
#if defined(STM32L1XX_MD) || defined(STM32L1XX_HD)|| defined(STM32L1XX_MD_PLUS) || defined(USE_STM32F3_DISCOVERY)
void EXTI0_IRQHandler(void)
#elif defined (STM32F37X)
void EXTI2_TS_IRQHandler(void)
#else
void EXTI9_5_IRQHandler(void)
#endif


After this is done, compile&download this firmware to STM32F3-DIscovery, then plag the USB cable to USER USB connector. Open Control Panel, then Device Manager, locate the USB Input Device with exclamation mark on it and update drivers from Windows Update for the device. After drivers are installed, Windows will recognize the device as Mass Storage + HID device.

Mass Storage will definitely not work. Windows will see it, but whatever you try to do with it, it will yell at you "Incorrect function"! HID will be working partially with STM HID Demonstrator - three of the LEDs will be working. To fix HID functionality you'll have to modify usb_des.c/h files to make USB descriptor match the actual hardware. If you really need this and fail to do it yourself, ask me in comments and I'll post HID descriptor that works with the Discovery button, four of its LEDs and one ADC channel.
And that's it. It's simple, I told you (at least when you have such a howto at your hands).
